Introduction

In the fast-paced and ephemeral world of technology where complexity is inevitable, architecture diagrams serve as beacons of clarity. These visual representations are not just pretty pictures; they're the roadmaps that guide teams through the labyrinth of modern software systems. But why are these diagrams so crucial?

Imagine trying to navigate a bustling metropolis without a map. That's essentially what tech teams face when working on complex systems without proper architecture diagrams. These visual aids act as the Rosetta Stone of software development, translating intricate system designs into comprehensible visual narratives. They facilitate communication, streamline onboarding, and serve as the foundation for critical decision-making processes.

However, creating and maintaining these diagrams is no walk in the park. It's more like trying to build a scale model of an entire city... while the city is constantly evolving, with new buildings popping up and old ones being torn down... and you're doing it all blindfolded, relying only on secondhand descriptions from people who each see the city differently. The challenges are multifaceted:

  • Time-consuming creation process: Crafting accurate and comprehensive diagrams often requires hours of painstaking work.
  • Rapid obsolescence: In the dynamic world of technology, diagrams can become outdated faster than you can say "system update."
  • Diverse mental models: Each team member may have a different understanding of the system, making it challenging to create a universally comprehensible diagram.
  • Balancing detail and clarity: Striking the right balance between providing enough information and maintaining readability is a constant struggle.

This blog post will guide you through the complexities of architecture visualization. We'll explore four key areas: Graphs, Hierarchy, Layout, and Context. By the end, you'll have a comprehensive understanding of the challenges in architecture visualization and be better equipped to create effective diagrams.

Author Background

Matt Kharrl is a seasoned expert in complex graph visualization with a diverse background spanning various applications. His journey in the field began at ThreatMetrix, where he developed graph solutions for fraud detection. Later, at Spec, he created investigative graph experiences to detect and prevent criminals and bots from exploiting online merchants.

Currently, at Catio, Matt is pushing the boundaries of graph technology even further, developing sophisticated graph interactions for technology leaders to understand and enhance complex distributed architectures. With his deep expertise and contributions to open-source graph visualization frameworks, Matt has established himself as a leading voice in the field of complex graph visualization and analysis.

Brushing Up On Graph Theory

Components & Relationships

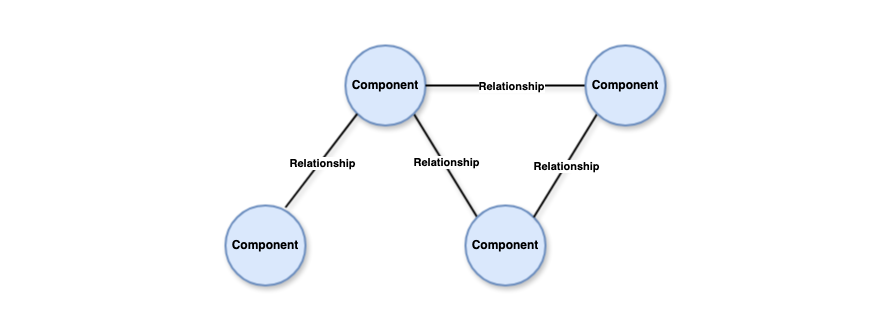

At the heart of every architecture diagram lies the concept of graphs. In the realm of graph theory, we represent system components as nodes and their relationships as edges. This abstraction allows us to capture the essence of complex systems in a visual format that's both intuitive and informative.

Nodes, in the context of software architecture, can represent a wide array of components. These might include services, databases, APIs, or even entire subsystems. Each node encapsulates a distinct entity within your architecture, serving as a focal point for understanding its role and responsibilities.

Edges, on the other hand, illustrate the relationships between these components. These connections can signify various types of interactions, such as data flow, dependencies, or communication protocols. By visualizing these relationships, we can quickly grasp how different parts of the system interact and depend on each other.

By representing these components and their interactions as a graph, we create a clear, high-level view of the system's architecture. This approach allows stakeholders to quickly understand the system's structure, identify potential bottlenecks, and make informed decisions about system design and optimization.

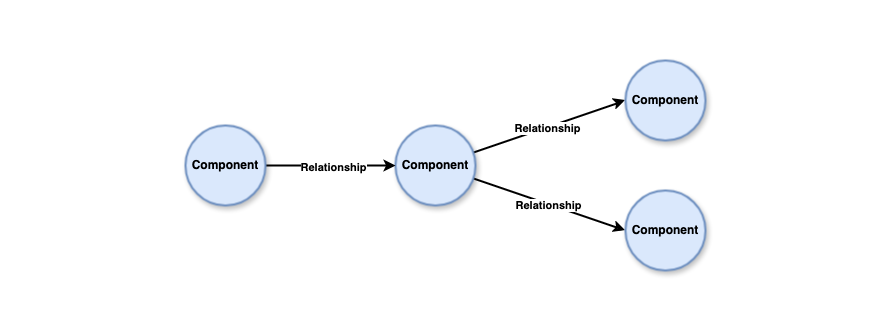

Directionality

When we talk about directed graphs in architecture diagrams, we're adding an extra layer of information to our visual representation. Imagine our nodes as cities and our edges as highways connecting them. The directions of the highways (either one-way or two-way) tell us a lot about potential patterns of transportation and governance across the map.

In the context of software architecture, this directionality is crucial. It represents the flow of data, dependencies between components, or the sequence of processes in our system. Let's break this down:

  • Data Flow: Directed edges can show how information moves through your system. For instance, an arrow pointing from a user interface node to a database node might indicate that user input is being stored, while an arrow in the opposite direction could represent data being retrieved and displayed.
  • Dependencies: Directionality can illustrate which components rely on others. If service A depends on service B, we'd draw an arrow from A to B. This is particularly useful when planning updates or assessing the impact of changes.
  • Process Sequences: In event-driven architectures or workflow systems, directed edges can show the order of operations. Each node might represent a step in the process, with arrows indicating the flow from one step to the next.

Understanding directionality is not just about making pretty pictures - it's a powerful tool for comprehending system behavior. By following the arrows in a directed graph, we can trace the path of a request through our system, identify potential bottlenecks, or spot circular dependencies that might cause issues. Directionality guides our understanding of how components interact, helping us navigate the complexities of our systems and make informed decisions about design, optimization, and troubleshooting.

Relationship Cycles

Now, let's dive into one of the more intriguing aspects of graphs in architecture diagrams: cycles. In graph theory, a cycle occurs when a path in the graph starts and ends at the same node, passing through a series of edges and other nodes along the way. While this might sound like a simple concept, cycles can add significant complexity to our architecture diagrams - and to the systems they represent.

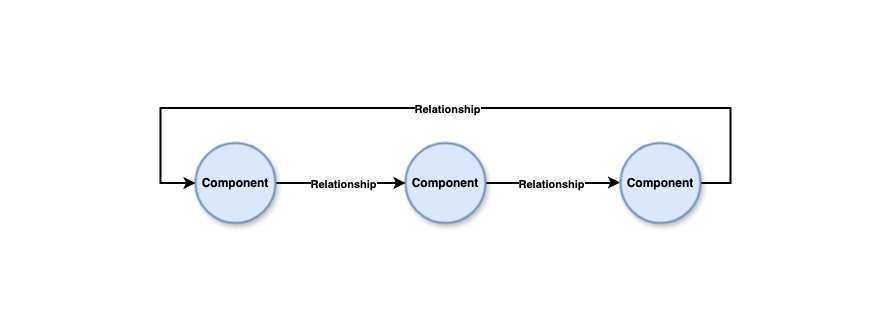

In the context of software architecture, cycles often represent inter-dependencies or feedback loops within a system. These can be both intentional design features and unintended consequences of system evolution. For example:

  • A microservices architecture where Service A calls Service B, which in turn calls Service C, which then calls back to Service A, forms a cycle. This could represent a complex business process or a distributed transaction.
  • In event-driven systems, cycles might represent feedback loops where the output of one process feeds back into the input of an earlier process, potentially creating a self-reinforcing or self-regulating system.

While cycles can be powerful tools for creating robust, responsive systems, they also pose significant challenges when it comes to visualization and understanding. Here's why:

  • Visual Complexity: Cycles can quickly make diagrams look cluttered and confusing, especially in large systems with multiple interconnected components.
  • Logical Complexity: Understanding the implications of cycles in a system often requires mental "unrolling" of the cycle, which can be cognitively demanding.
  • Potential for Infinite Loops: In some cases, cycles might represent the potential for infinite loops or deadlocks in the system, which are critical issues that need to be identified and addressed.

To tackle these challenges, architects and diagram creators often employ various strategies. These might include using different line styles or colors to highlight cycles, providing zoomed-in views of cyclic relationships, or even temporarily "breaking" cycles in the diagram to simplify the initial view while providing details on the cycle in accompanying notes.

Remember, the goal of our architecture diagrams isn't just to create a pretty picture - it's to foster understanding and facilitate decision-making. When dealing with cycles, we must strike a balance between accurately representing the system's complexity and creating a diagram that's comprehensible and useful to our audience.

Multi-Graphs

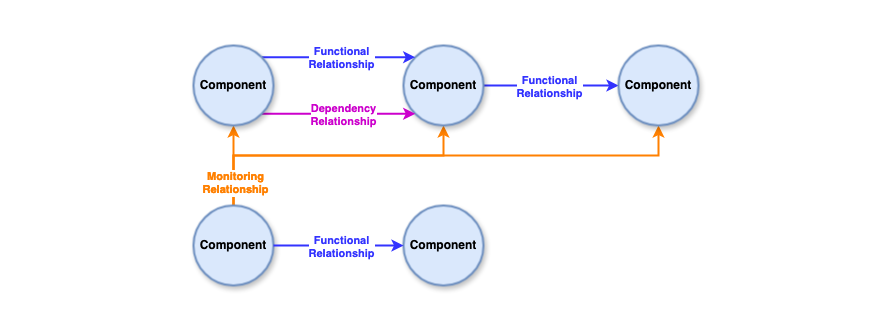

In the world of graph theory, multi-graphs are like the Swiss Army knives of relationships. Unlike simple graphs where each pair of nodes can have at most one edge between them, multi-graphs allow multiple edges (also known as parallel edges) between the same pair of nodes. This might sound like a minor distinction, but in the realm of architecture diagrams, it's a game-changer.

Multi-graphs are particularly relevant to architecture diagrams because they allow us to represent the multiple ways components can interact within various systems and contexts. Imagine trying to map out not just the communication channels in your office, but also how each person fits into different project teams, reporting structures, and social groups. Similarly, in technology architecture, multi-graphs enable us to visualize how components participate in multiple systems or contexts simultaneously, providing a richer, more nuanced picture of system relationships.

In a team's technology architecture, multi-graphs can manifest in various ways:

  • Multiple Systems Participation: A service might have relationships in different contexts. For instance, it could have edges representing its role in the product workflow, its place in the logging and monitoring stack, and its position in the deployment pipeline architecture.
  • Multiple APIs: A service might expose different APIs for different purposes. For example, a database service could have separate read and write APIs, each represented by a distinct edge.
  • Different Protocols: Two services might communicate via both HTTP and gRPC, depending on the operation. Each protocol could be represented as a separate edge.
  • Redundancy and Load Balancing: In high-availability systems, you might have multiple identical connections between components for redundancy or load balancing purposes.
  • State Transitions: In event-driven architectures, a component might transition between states through different events, each represented by a separate edge.

However, with great power comes great... visualization challenges. Representing multi-graphs in architecture diagrams can be tricky business:

  • Visual Clutter: Multiple edges between the same nodes can quickly turn your clean, professional diagram into something resembling a plate of spaghetti. And not the good kind.
  • Edge Labeling: With multiple edges comes the need for clear labeling. How do you distinguish between edges representing different systems or contexts without turning your diagram into a word search puzzle?
  • Layout Complexity: Many layout algorithms struggle with multi-graphs, potentially leading to suboptimal node positioning and increased edge crossings, especially when representing multiple systems.
  • Cognitive Load: While multi-graphs provide more information about various systems and contexts, they also require more mental effort to parse and understand. It's a classic case of "with great power comes great responsibility" - or in this case, "with great detail comes great confusion".

Addressing the challenges of multi-graphs in architecture diagrams requires a blend of visual design, thoughtful abstraction, and innovative techniques. Strategies include using varied edge styles, implementing interactive elements, and creating multiple focused views. The goal is not to show everything, but to highlight the right aspects for your audience's understanding. This often involves simplifying complex multi-graphs into separate, more digestible diagrams. Ultimately, creating effective multi-graph architecture diagrams is a delicate balance between detail and clarity, demanding careful consideration and making it as much an art as it is a science.

Establishing Component Hierarchy

In software architecture, hierarchical relationships are crucial for organizing and understanding complex systems. Two powerful tools for representing these relationships are ancestry trees and nested graphs.

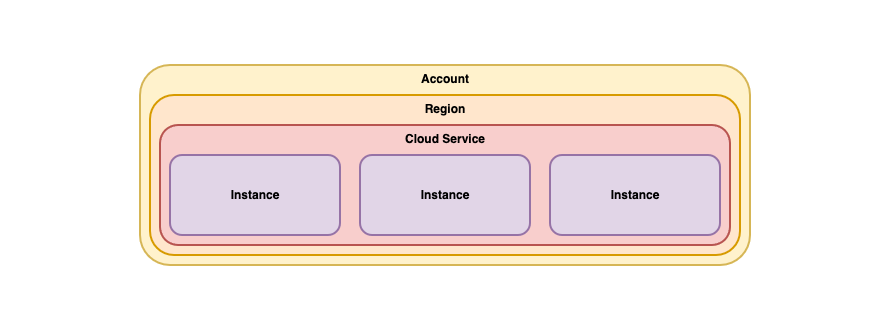

Ancestry Trees

Ancestry trees, borrowed from genealogy, provide a clear visualization of system components and their relationships. In this context:

  • Nodes represent components
  • Parent nodes represent higher-level systems or services
  • Child nodes represent sub-components or dependent services

The benefits of using ancestry trees in architecture diagrams include:

  • Clarity and Simplification: Complex systems become more manageable and understandable
  • Modularity and Encapsulation: Each level encapsulates its own complexity
  • Scalability: Easy incorporation of new components without losing coherence
  • Traceability: Easier tracking of dependencies and relationships

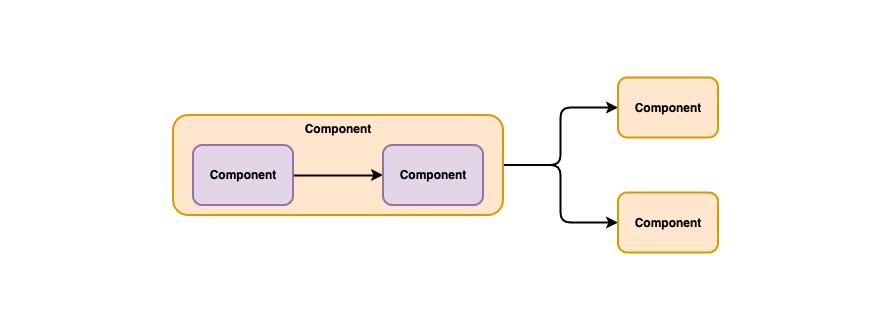

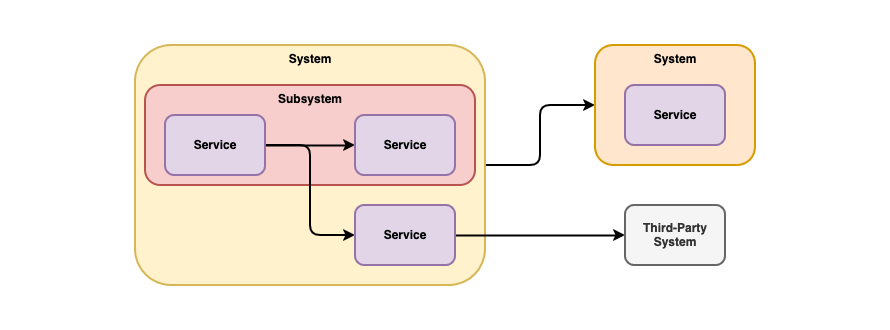

Nested Graphs

Nested graphs take hierarchy representation a step further, allowing for multiple levels of detail within a single visualization. They're like Russian nesting dolls of information, with graphs contained within nodes.

Key advantages of nested graphs include:

  • Complexity Management: Organizing intricate systems into digestible layers
  • Flexible Detail: Ability to zoom in or out on specific components
  • Context Preservation: Maintaining overall system perspective while exploring subsystems

However, nested graphs also present challenges:

  • Navigation Complexity: Potential disorientation within multiple nested levels
  • Information Overload: Risk of overwhelming viewers with excessive detail
  • Layout Consistency: Difficulty in maintaining visual coherence across nesting levels

Combining Trees and Graphs

To fully represent hierarchical technology architecture, we often need to combine the concepts of trees and graphs. This hybrid approach allows us to capture both strict hierarchical relationships and the more complex, interconnected nature of modern systems.

In practice, this might look like a tree structure overlaid with additional connections between nodes at different levels or branches. This combination provides a comprehensive view of the system architecture, balancing detail with comprehensibility.

By leveraging these hierarchical concepts in our architecture diagrams, we can create visualizations that provide valuable insights into the structure and behavior of complex systems, making architecture visualization more accessible and useful for all stakeholders involved in system design and management.

Optimizing Diagram Layout

Layout Algorithms

When it comes to creating effective architecture diagrams, the choice of layout algorithm plays a crucial role in determining how well your visualization communicates complex system relationships. Let's dive into some of the most common layout algorithms and explore their strengths and potential pitfalls.

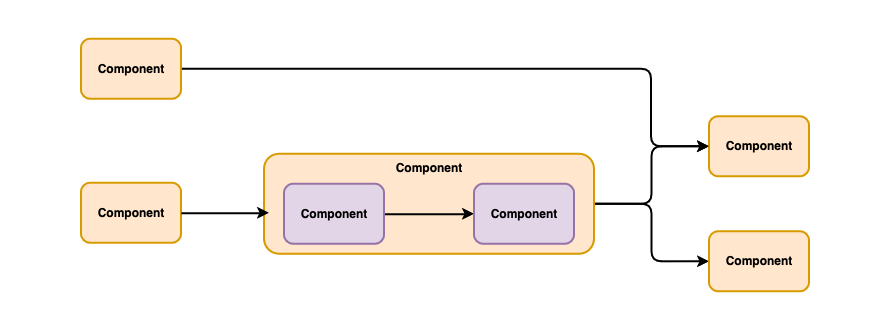

Layered Layout

Layered layouts, also known as hierarchical layouts, are particularly useful for representing systems with clear hierarchical structures or directional flow. This algorithm arranges nodes in horizontal or vertical layers, making it ideal for visualizing dependencies, data flow, or organizational structures.

  • Pros:
    • Clearly shows hierarchical relationships and flow direction
    • Minimizes edge crossings, improving readability
    • Works well for directed acyclic graphs (DAGs)
  • Cons:
    • Can consume significant vertical space for deep hierarchies
    • May not efficiently represent non-hierarchical relationships

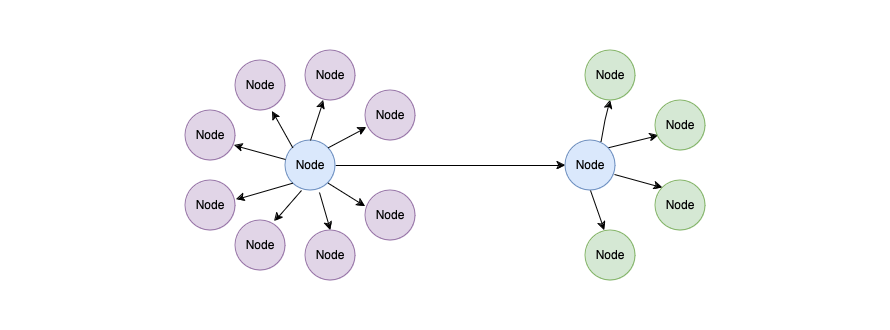

Force-Directed Layout

Force-directed layouts use physical simulation to determine node positions. They treat edges as springs and nodes as charged particles, resulting in aesthetically pleasing arrangements that often reveal underlying structure.

  • Pros:
    • Produces visually appealing, organic layouts
    • Effective for visualizing clusters and overall structure
    • Works well for undirected graphs
  • Cons:
    • Can be computationally expensive for large graphs
    • May not always produce consistent results
    • Can sometimes obscure hierarchical relationships

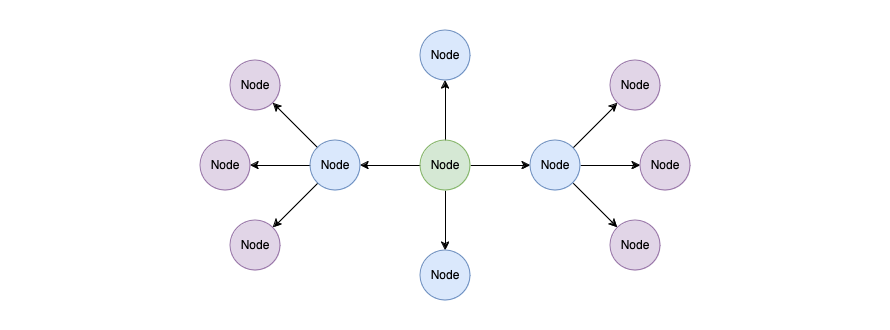

Radial Layout

Radial layouts arrange nodes in a circle, with edges drawn between them. This approach can be particularly effective for visualizing cyclic relationships or emphasizing the inter-connections of components.

  • Pros:
    • Highlights cyclic relationships and inter-connections
    • Efficient use of space for certain graph types
    • Visually distinct and memorable
  • Cons:
    • Can become cluttered with many edges
    • May not effectively show hierarchical relationships
    • Can be challenging to read for large graphs

Impact on Diagram Readability and Understanding

The choice of layout algorithm significantly impacts how easily your audience can interpret and understand your architecture diagram. Here are some key considerations:

  • Clarity of Relationships: Different layouts emphasize different types of relationships. Choose an algorithm that best highlights the key relationships in your system.
  • Cognitive Load: Complex layouts can increase cognitive load. Strive for a balance between showing necessary detail and maintaining simplicity.
  • Consistency: Using consistent layouts across related diagrams can help viewers quickly understand and compare different aspects of your system.
  • Scalability: Consider how your chosen layout will handle growth in your system. Will it remain readable as you add more components?

Remember, there's no one-size-fits-all solution when it comes to layout algorithms. The best choice depends on your specific system, the relationships you want to emphasize, and your audience's needs. Don't be afraid to experiment with different layouts to find the one that best communicates your architecture's essence.

Nested Layouts

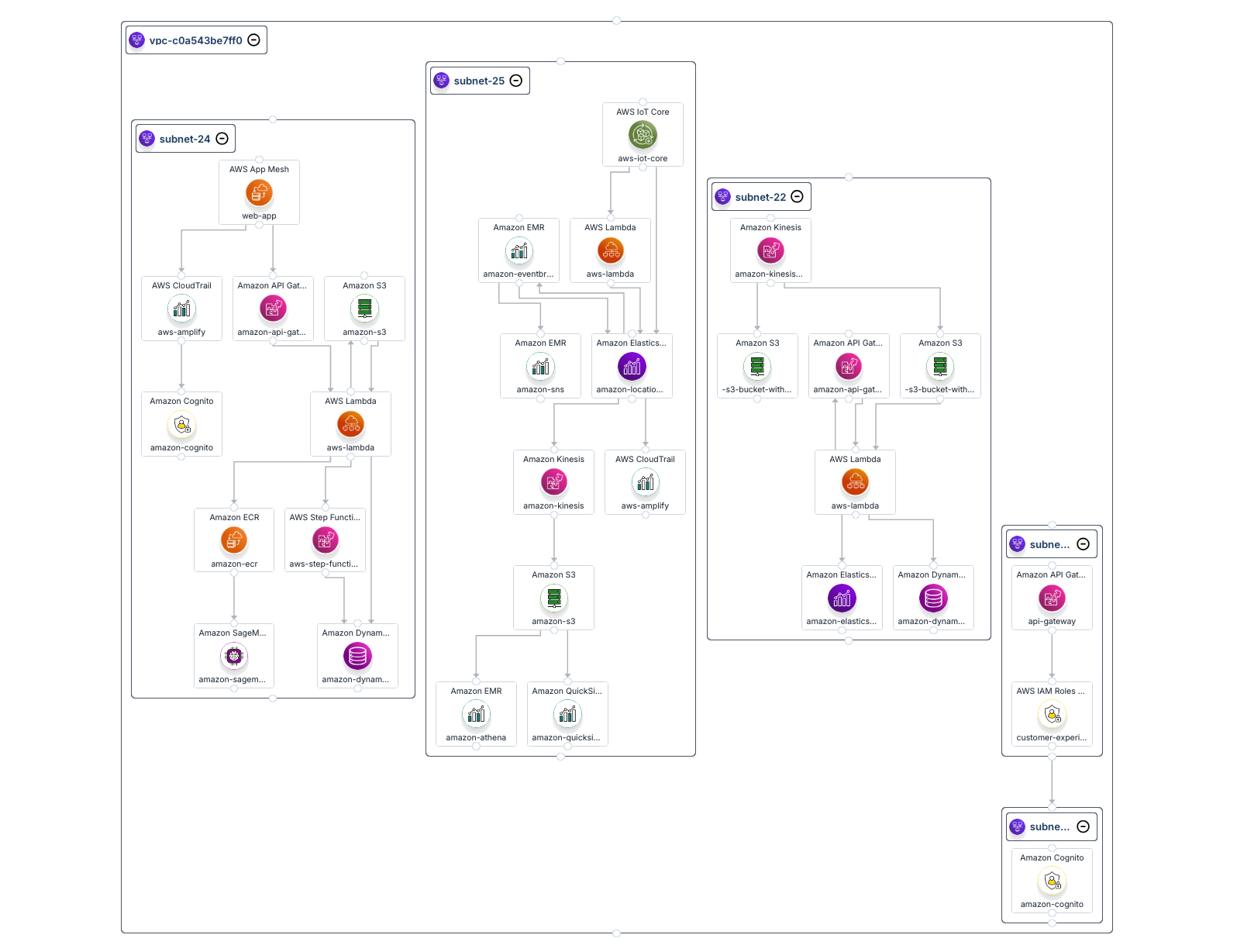

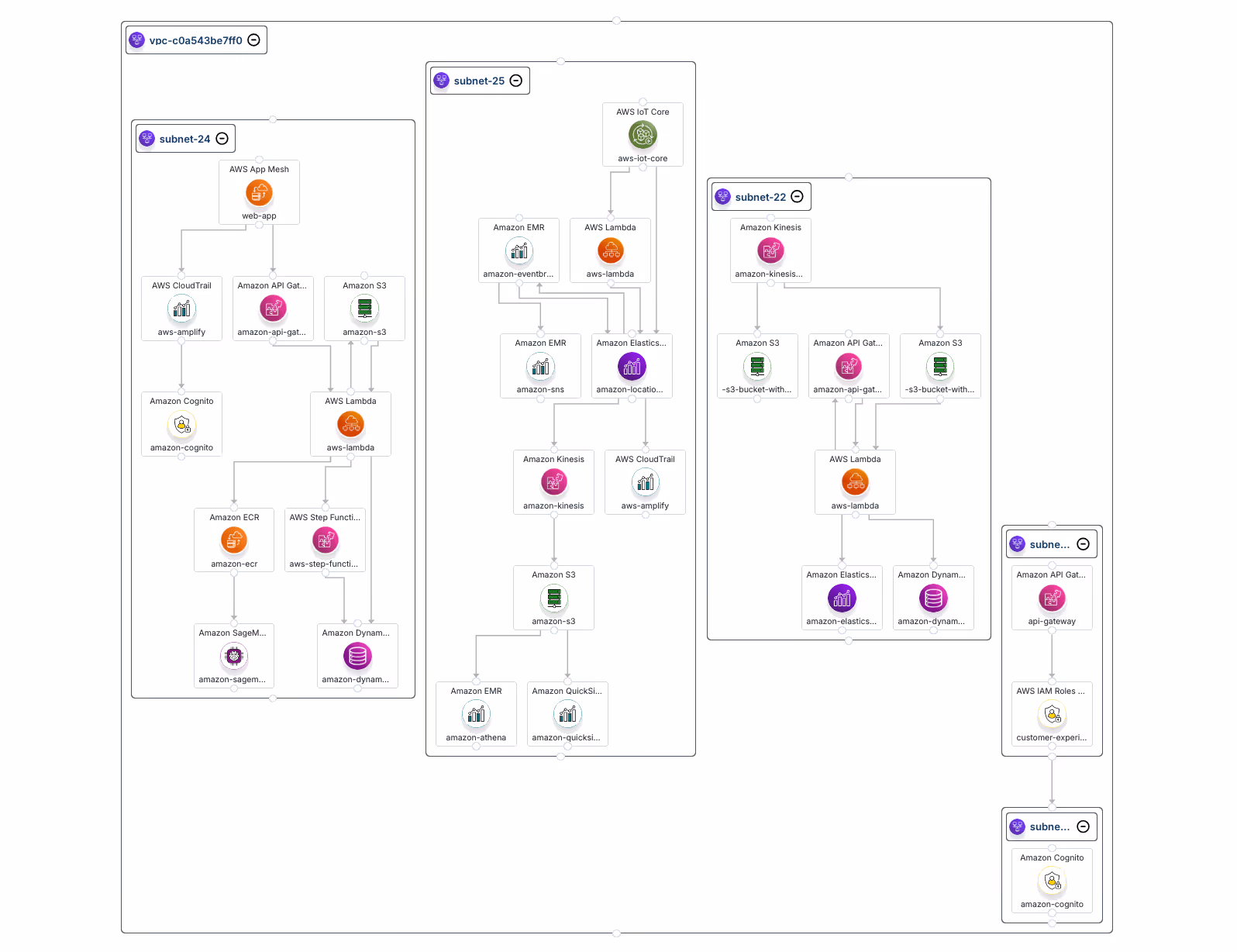

Nested Layouts in Hierarchical Diagrams

Nested layouts are a powerful technique in architecture diagrams that allow us to represent complex, multi-level systems with clarity and precision. In essence, nested layouts involve embedding smaller diagrams within the nodes of a larger diagram, creating a hierarchical structure that can reveal both high-level relationships and granular details.

This approach is particularly useful when dealing with systems that have multiple layers of abstraction or components that themselves contain complex subsystems. For instance, you might have a top-level diagram showing the main services in your architecture, with each service node containing a nested diagram detailing its internal components and connections.

Strategies for Consistency Across Nested Levels

Maintaining visual and conceptual consistency across different levels of a nested layout is crucial for ensuring that your diagram remains intuitive and easy to navigate. Here are some strategies to achieve this:

  • Consistent Color Coding: Use a coherent color scheme across all levels. For example, database-related components could always be blue, regardless of their nesting level.
  • Uniform Iconography: Employ consistent icons or symbols for similar components across different nesting levels.
  • Standardized Connectors: Use the same style of connectors (arrows, lines) to represent similar relationships at all levels.

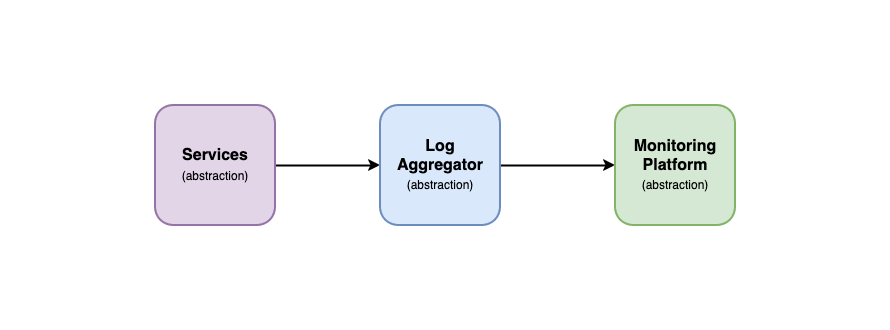

  • Consistent Abstraction: Ensure that each level of nesting represents a similar degree of abstraction relative to its parent level.

Challenges in Creating Intuitive Nested Layouts

While nested layouts can be incredibly informative, they also present unique challenges:

  • Information Overload: It's easy to overwhelm viewers with too much detail. Careful consideration must be given to what information is essential at each level.
  • Navigation Complexity: As the number of nested levels increases, it can become difficult for users to keep track of where they are in the overall hierarchy.
  • Visual Clutter: Nested diagrams can quickly become cluttered if not carefully designed, potentially obscuring important relationships.
  • Scalability: As systems grow, maintaining readable nested layouts can become increasingly challenging.

The Complexity of Mixed Layout Algorithms

An additional layer of complexity arises when different layout algorithms are employed at different levels of the hierarchy. While this approach can offer more flexibility in representing various aspects of your system, it also introduces new challenges:

  • Cognitive Load: Users may need to switch between different mental models as they navigate through levels with different layout algorithms.
  • Consistency vs. Optimality: There's often a trade-off between maintaining a consistent layout approach and using the most appropriate algorithm for each subsystem.
  • Transition Design: Special attention must be given to designing intuitive transitions between levels that use different layout algorithms.

Despite these challenges, when implemented thoughtfully, nested layouts with mixed algorithms can provide a powerful tool for representing complex, multi-faceted systems. The key lies in striking the right balance between detail, consistency, and clarity, always keeping your audience's needs at the forefront of your design decisions.

Ranking & Depth

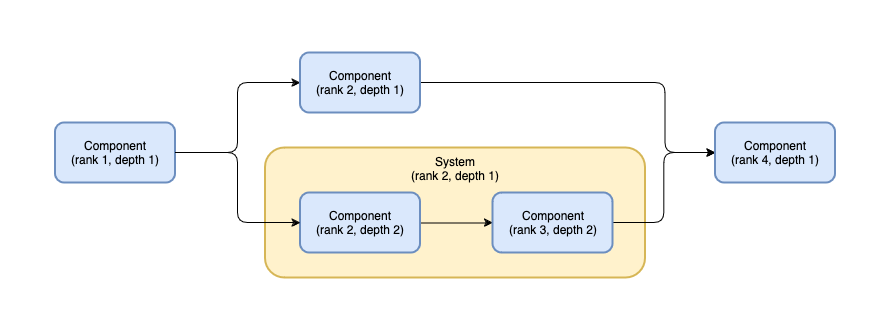

In the realm of architecture diagrams, ranking and depth are two fundamental concepts that significantly enhance our ability to represent complex systems visually. These concepts not only add structure to our diagrams but also provide crucial context for interpreting the relationships between components. Let's delve into these concepts and explore their impact on diagram interpretation.

Understanding Ranking in Architecture Graphs

Ranking in an architecture graph refers to the hierarchical position or importance of a component within the system. This concept can be leveraged in two primary ways:

  • Importance Ranking: Components can be ranked based on their significance to the overall system. For instance, critical services or core databases might be assigned a higher rank, visually emphasizing their importance.
  • Sequential Ranking: Ranking can also represent the sequence of operations or data flow within a system. This is particularly useful for visualizing processes or workflows.

By incorporating ranking into our diagrams, we provide viewers with immediate visual cues about the relative importance or sequence of components, facilitating quicker comprehension of the system's structure and behavior.

Exploring Depth in Architecture Graphs

Depth in an architecture graph represents the level of nesting or hierarchy of a component. This concept is crucial for understanding the relationships between different parts of a system. Depth can be considered in two contexts:

  • Relative to Ancestry: A component's depth can be determined by its position within its own family tree or subsystem. This approach is useful for understanding local hierarchies and relationships.
  • Relative to Entire Graph: Alternatively, depth can be measured against the entire system graph. This global perspective helps in understanding a component's position within the broader architecture.

The choice between these two approaches depends on the specific needs of your diagram and the aspects of the system you want to emphasize.

Impact on Diagram Interpretation

The incorporation of ranking and depth in architecture diagrams has a profound impact on how viewers interpret and understand the represented system:

  • Enhanced Clarity: By visually representing hierarchy and importance, ranking and depth make complex systems more digestible and easier to navigate.
  • Improved Context: These concepts provide crucial context for understanding the relationships between components, aiding in system analysis and decision-making.
  • Facilitated Troubleshooting: In the context of system maintenance or debugging, clear representation of component hierarchy can significantly speed up problem identification and resolution.

By thoughtfully applying ranking and depth in our architecture diagrams, we can create more informative, intuitive, and valuable visualizations. These concepts serve as powerful tools in our arsenal, enabling us to craft diagrams that not only represent system structure but also convey critical information about component relationships, importance, and sequence.

Clustering & Spacing

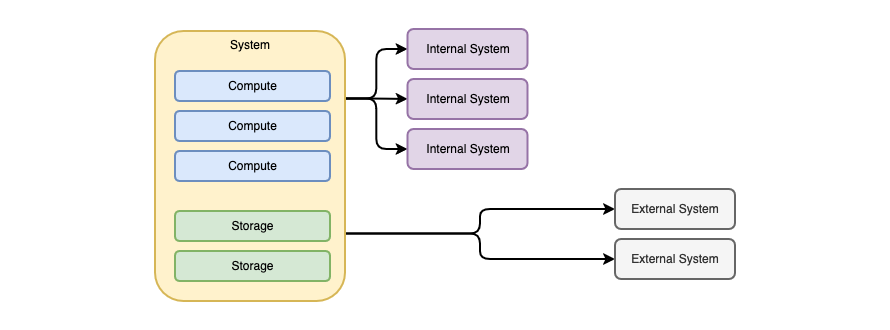

In architecture diagrams, clustering and spacing within the layout are crucial for creating clear and comprehensible visualizations. These elements work together to improve cognitive processing, establish information hierarchy, and simplify communication.

Clustering effectively groups related components, leveraging proximity to aid in understanding. Proper spacing distinguishes between groups and components, preventing visual clutter and highlighting relationships. Together, they guide the viewer's eye and reduce cognitive load.

Balancing Compactness and Readability

Finding the right balance between compactness and readability is key. Consider these factors:

  • Screen Real Estate: Ensure the diagram fits well on common screen sizes.
  • Information Density: More complex systems generally require more space for clarity.
  • Audience Needs: Tailor the level of detail to your audience's familiarity with the system.

Sometimes, creating multiple views of the same system at different levels of detail or abstraction is beneficial.

Impact on Understanding

Effective clustering, spacing, and layout techniques enhance diagram clarity by:

  • Improving cognitive processing
  • Establishing clear information hierarchy
  • Facilitating easier communication about system components
  • Increasing engagement through aesthetic appeal

By mastering these elements, we can create architecture diagrams that not only accurately represent system structure but also enhance understanding and facilitate meaningful discussions about system design and architecture. The goal is to strike the right balance, creating diagrams that effectively communicate complex systems to diverse audiences.

Embedding Unique Context

Keeping Intent Front-of-Mind

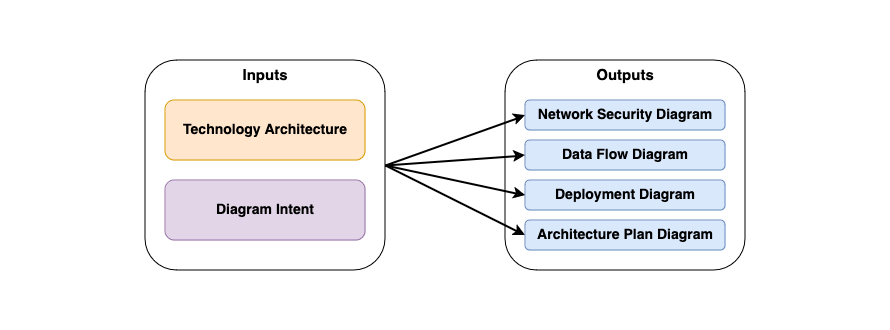

When creating architecture diagrams, having a clear intent is paramount. The intent serves as the guiding principle that shapes every aspect of your diagram, from its overall structure to the minute details. It's the foundation upon which effective communication is built.

A well-defined intent helps you:

  • Focus on what matters: By clearly understanding your purpose, you can prioritize which elements to include and emphasize in your diagram.
  • Tailor your message: Different intents require different approaches. Your intent will guide you in choosing the most appropriate level of detail, layout, and visual elements.
  • Engage your audience: When your intent aligns with your audience's needs, your diagram becomes more relevant and impactful.

How Intent Shapes Diagram Design and Content

The intent of your diagram significantly influences its design and content. Here's how:

  • Level of detail: A high-level overview for executives might require less detail than a technical deep-dive for developers.
  • Visual hierarchy: Your intent determines which elements should be emphasized visually to draw attention to key components or relationships.
  • Layout choice: Different intents may be better served by specific layout algorithms, such as hierarchical for system structure or circular for data flow.
  • Notation and symbols: The choice of notation (e.g., UML, C4 model) should align with your intent and audience's familiarity.

Examples of Intents and Their Impact

Let's explore some common intents and how they might influence diagram structure:

  • System Overview: A high-level diagram showing major components and their relationships. This might use a simple box-and-line structure with minimal detail inside each component.
  • Data Flow Analysis: A diagram focused on how data moves through the system. This could use a left-to-right or top-to-bottom flow, with emphasis on connectors and data transformations.
  • Security Audit: A diagram highlighting security measures and potential vulnerabilities. This might use color coding to indicate security levels and callouts to note specific security features.
  • Scalability Planning: A diagram showing current system capacity and potential growth areas. This could use nested structures to show where components can be replicated or expanded.

By aligning your diagram's structure with your intent, you create a powerful tool for communication and analysis. Remember, the most effective architecture diagrams are those where every element serves the overarching intent, resulting in clear, focused, and impactful visualizations.

Utilizing Purposeful Abstraction

Purposeful abstraction in architecture diagrams is a powerful tool for enhancing communication and understanding. By carefully selecting which details to include or omit, we create more accessible visualizations of complex systems, allowing viewers to grasp key concepts without being overwhelmed by unnecessary complexity.

Choosing the right level of abstraction involves several considerations:

  • Audience knowledge: Tailor the detail level to match your viewers' technical expertise
  • Clear objectives: Let the diagram's purpose guide what information to include
  • Consistent representation: Maintain uniform abstraction across similar components
  • Progressive disclosure: Offer options to drill down into more detailed views when needed

The main challenge in creating abstracted diagrams lies in maintaining accuracy while simplifying. To strike the right balance:

  • Prioritize essential information that's crucial for understanding core functionality
  • Use annotations and legends to clarify abstracted elements without cluttering the main diagram
  • Validate your abstractions with subject matter experts to ensure accuracy
  • Iterate based on feedback to find the optimal balance between simplicity and detail

By mastering purposeful abstraction, we can create architecture diagrams that not only accurately represent complex systems but also effectively communicate their essence to diverse audiences. The goal is to show the right information in the right way, facilitating better understanding and more productive discussions about system architecture.

Optimizing Flow

Purposeful visual flow is a critical element that enhances the diagram's ability to communicate its intended message. By carefully crafting the visual journey through the diagram, we can guide viewers to understand complex systems more intuitively and effectively.

Guiding the Viewer's Attention

Several techniques can be employed to direct the viewer's gaze and cognitive processing:

  • Hierarchical Layout: Arrange components in a top-down or left-to-right manner to imply importance or sequence.
  • Color Coding: Use a consistent color scheme to group related elements or highlight critical components.
  • Size Variation: Adjust the size of elements to denote their significance within the system.
  • Connectors and Arrows: Utilize clear, directional lines to show relationships and data flow between components.

Impact on Diagram Comprehension

A well-designed flow in architecture diagrams significantly enhances comprehension by:

  • Reducing Cognitive Load: Viewers can process information more efficiently when it's presented in a logical, flowing manner.
  • Enhancing Information Retention: A clear visual narrative helps viewers remember key aspects of the system structure.
  • Facilitating Communication: Stakeholders can more easily discuss and analyze the system when its representation follows a coherent flow.

By mastering the art of purposeful visual flow, we create architecture diagrams that not only represent system structures accurately but also guide viewers through complex information landscapes with clarity and purpose. This approach transforms our diagrams from mere static representations into powerful tools for understanding, analysis, and decision-making in system architecture.

Embracing Advancements in Automation

In an era where efficiency and precision are paramount, advancements in automation are transforming how architecture diagrams are created and maintained. By leveraging intelligent tools, teams can streamline workflows, reduce manual effort, and focus more on strategic design decisions. This section explores how automation enhances diagram generation, ensuring accuracy while keeping pace with evolving systems.

Introducing Catio, Your Tech Architecture's Digital Twin

Catio offers a suite of advanced and intuitive tools and experiences for automatically addressing the challenges of architecture diagram creation and analysis. Catio streamlines the creation and update process, dramatically reducing the time and effort required to produce and maintain high-quality architecture diagrams. This efficiency boost allows architects and developers to focus more on system design and less on the technicalities of diagram creation.

At the core of Catio's capabilities is our seamless integration with your existing cloud technology platforms. This integration allows Catio to read and extract critical information about the components and relationships that make up your technology architecture. By tapping directly into your cloud infrastructure, Catio gains a comprehensive understanding of your system's structure, enabling it to generate accurate and up-to-date diagrams automatically.

This deep integration means that Catio can reflect changes in your architecture in real-time, ensuring that your diagrams are always aligned with your actual system configuration. Regardless of your cloud provider, monitoring stack, or orchestration approach, Catio's ability to interface with these platforms provides a foundation for creating precise, insightful, and dynamic architecture visualizations.

Furthermore, Catio excels in enforcing consistency across large-scale projects. By providing standardized visualizations, it ensures uniform representation of components and relationships. This consistency not only enhances the overall professionalism of the diagrams but also improves comprehension across different teams and stakeholders.

Beyond these core benefits, Catio offers advanced features such as architecture versioning, customizable views, automated layout optimization, and custom business-aware architecture recommendations. These capabilities further enhance team productivity and ensure that architecture diagrams remain valuable, up-to-date assets throughout the project lifecycle.

The Enduring Value of Human Expertise

While automation brings numerous benefits, the role of human expertise remains crucial in architecture diagram creation. Catio empowers professionals by handling the tedious and time-consuming aspects of diagramming, allowing users to focus on high-level decision-making and analysis.

By intelligently incorporating user-provided context and intent, Catio streamlines the diagram creation process without sacrificing the essential human element. This synergy between advanced technology and expert knowledge enables professionals to leverage best-in-industry visualizations, ultimately leading to more insightful and impactful technology decisions.

The combination of Catio's automation capabilities and the human expertise of architects and technology leaders results in:

  • Enhanced efficiency: Professionals can create and update complex diagrams in a fraction of the time, freeing up resources for critical thinking and innovation.
  • Improved accuracy: Catio's automated processes reduce the risk of human error in repetitive tasks, while still allowing for expert oversight and customization.
  • Greater adaptability: As systems evolve, the human-Catio partnership enables rapid updates and iterations, ensuring diagrams remain current and valuable.
  • Deeper insights: By offloading routine tasks to Catio, professionals can dedicate more time to analyzing system architecture, identifying optimizations, and driving strategic decisions.

In essence, Catio acts as a powerful tool that amplifies human expertise, rather than replacing it. This harmonious integration of automation and human insight paves the way for more effective, efficient, and innovative approaches to architecture visualization.

Conclusion

Architecture diagrams are vital tools in software development, serving as visual roadmaps for complex systems. Effective diagrams rely on clear intent, purposeful abstraction, and optimized visual flow. By mastering these elements, architects can create accurate, comprehensible representations that enhance communication and decision-making across diverse teams, striking a balance between detail and simplicity while maintaining clarity and accuracy.

As we look to the future of architecture diagram creation, it's clear that tools like Catio represent a significant step forward. By combining the efficiency of automation with the irreplaceable value of human expertise, we can create more effective, accurate, and insightful visualizations of complex systems.

We encourage professionals in the field to explore Catio for themselves. By doing so, you'll not only streamline your workflow but also enhance your ability to communicate complex architectural concepts clearly and effectively. The future of architecture visualization and analysis is here – it's time to seize the opportunity and elevate your diagramming capabilities with Catio.

------------------------------

About the Author

Matt Kharrl is Catio’s Lead Fullstack Engineer, previously the VP of Engineering of Spec and a Software Engineer at Atlassian. Matt is an expert in reactive frontend development and cutting-edge of fullstack engineering. Follow Matt on LinkedIn to stay up to date on his latest thinking and developments.

Learn more about Catio

We are building Catio, a Copilot for Tech Stack Architecture. Catio can help you improve the architecture of your tech stack by 80% - Catio equips CTOs, architects, and counterparts to manage their tech stacks much more effectively, data-driven and AI-enabled. Please watch this demo video to learn how Catio works.

  • Please review our Product Brochure to learn more about architecture management, a detailed view into our product proposition, and the top use cases pursued by our customers.
  • Want to stay updated on the latest in tech stack architecture and AI technologies? Follow Catio on LinkedIn.
  • Interested in learning more or implementing Catio for your company? Contact us to schedule a personalized consultation.
